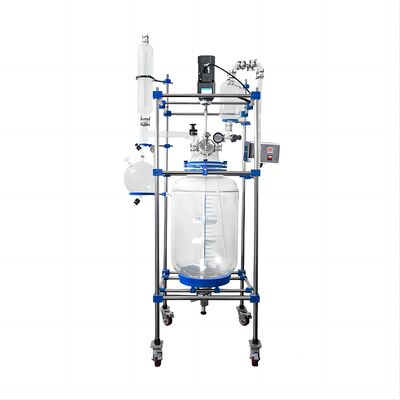

150-200L Laboratory Glass Chemical Jacketed Reactor

150-200L Laboratory Glass Chemical Jacketed Reactor

Detail Information
Capacity:
150L-200L
자동등급:
오토매틱
유형:
반응 주전자
핵심 구성요소::
엔진, 모터
Glass Material::
High Borosilicate Glass 3.3
Working Temperatur::
-350
가열 방법 ::
열 오일 가열
보증 서비스 후::
온라인 지원
Product Modle:
PGR-150
용량(L):
150
Neck No.on Cover:
6
External Diameter of Inner Vessel(mm):
550
External Diameter of Outer Vessel(mm):
600
커버 직경(mm):
340
Vessel Height(mm):
980
모터 전력 ((W):
400
진공도 (mpa):
0.098
회전 속도(RPM):
50-600
토크(nm):
6.37
Power(V):
220
Diamension(mm):
1200*900*3000
Product Modle:
PGR-200
용량(L):
200
External Diameter of Inner Vessel(mm):
600
External Diameter of Outer Vessel(mm):
650
Vessel Height(mm):
1200
모터 전력 ((W):
750
Diamension(mm):
1200*900*3200
강조하다:

150-200L jacketed glass reactor

,

laboratory chemical reactor with jacket

,

large capacity lab glass reactor

Product Description
150-200L Laboratory Glass Chemical Jacketed Reactor
150-200L Laboratory Glass Chemical Jacketed Reactor 0

150-200L Laboratory Glass Chemical Jacketed Reactor

The 150-200L laboratory glass chemical jacketed reactor is a robust reactor designed to handle larger reaction volumes, ranging from 150 to 200 liters. Its capacity makes it suitable for advanced research and industrial applications. This reactor is constructed using high-quality laboratory-grade glass, which is resistant to chemical corrosion and ensures optimal visibility of the reaction process. Additionally, the reactor can withstand a wide range of operating temperatures and pressures, providing researchers with versatility and control.

  • High-quality laboratory-grade glass construction
  • Excellent chemical corrosion resistance
  • Optimal visibility of reaction processes
  • Versatile temperature and pressure handling capabilities
  • Robust design for advanced research and industrial use

Ideal for: Pharmaceutical research, chemical synthesis, material science, and pilot-scale production in industries requiring precise reaction control.

Key Product Attributes

Glass Material High Borosilicate Glass 3.3
Automatic Grade Automatic
Type Reaction Kettle
Heating Method Thermal Oil Heating
After Warranty Service Online support

Technical Specifications

Model: PGR-150

Parameter Value Unit Details
Volume 150 L Jacketed Reactor
Neck No. on Cover 6 - Standard Configuration
External Diameter of Inner Vessel 550 mm -
External Diameter of Outer Vessel 600 mm -
Cover Diameter 340 mm -
Vessel Height 980 mm -
Motor Power 400 W -
Vacuum Degree 0.098 Mpa -
Rotation Speed 50-600 rpm Variable Speed
Torque 6.37 Nm -
Power 220 V Single Phase
Dimensions 1200*900*3000 mm (L*W*H)

Model: PGR-200

Parameter Value Unit Details
Volume 200 L Jacketed Reactor
Neck No. on Cover 6 - Standard Configuration
External Diameter of Inner Vessel 600 mm -
External Diameter of Outer Vessel 650 mm -
Cover Diameter 340 mm -
Vessel Height 1200 mm -
Motor Power 750 W -
Vacuum Degree 0.098 Mpa -
Rotation Speed 50-600 rpm Variable Speed
Torque 6.37 Nm -
Power 220 V Single Phase
Dimensions 1200*900*3200 mm (L*W*H)

General Specifications

Parameter Value Unit Details
Working Temperature -350 °C (Note: This value seems unusually low for a working temperature. Please verify.)
Core Components Engine, Motor - Provided
